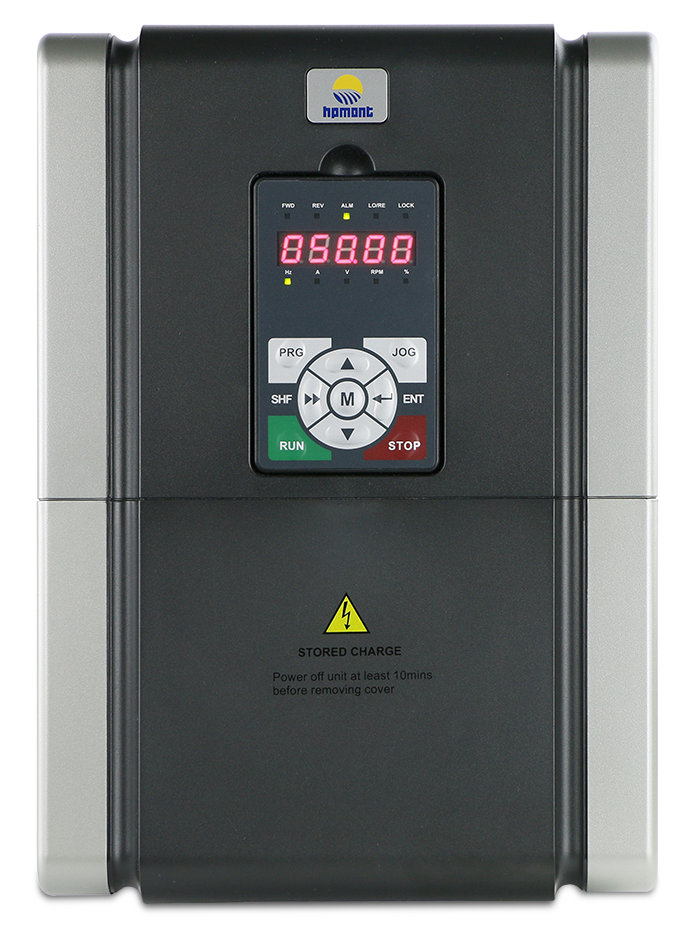

HD30 Vector Control Inverter
HD30 is vector control inverter for general industry-oriented applications with high performance and high reliability.
1&3 plase 200 - 240V……0.4 - 15kW
3 plase 200 - 240V……18.5 - 75kW
3 plase 380 - 460V……0.75 - 450kW
Dimensions: Wire drawing industry, Crane, Printing and Packaging, papermaking, High-end CNC machine, textile
High performance SVC control
Speed control accuracy: ±0.5%
Speed control range: 1:100
Torque control response:<200ms< span="">
Start torque: 180% rated torque /0.5Hz
Customizing the user menu
Can map common parameters to the user menu Group U so as to achieve operating common parameters by operating Group U.
Motor overheating protection
Multiple expansion cards
Additional I/O option and plastic interface option
Multiple industrial applications
Process PID
Simple PLC
Wobble operation
Length control
Higher product power rating
The product power rating is up to 450kW.
