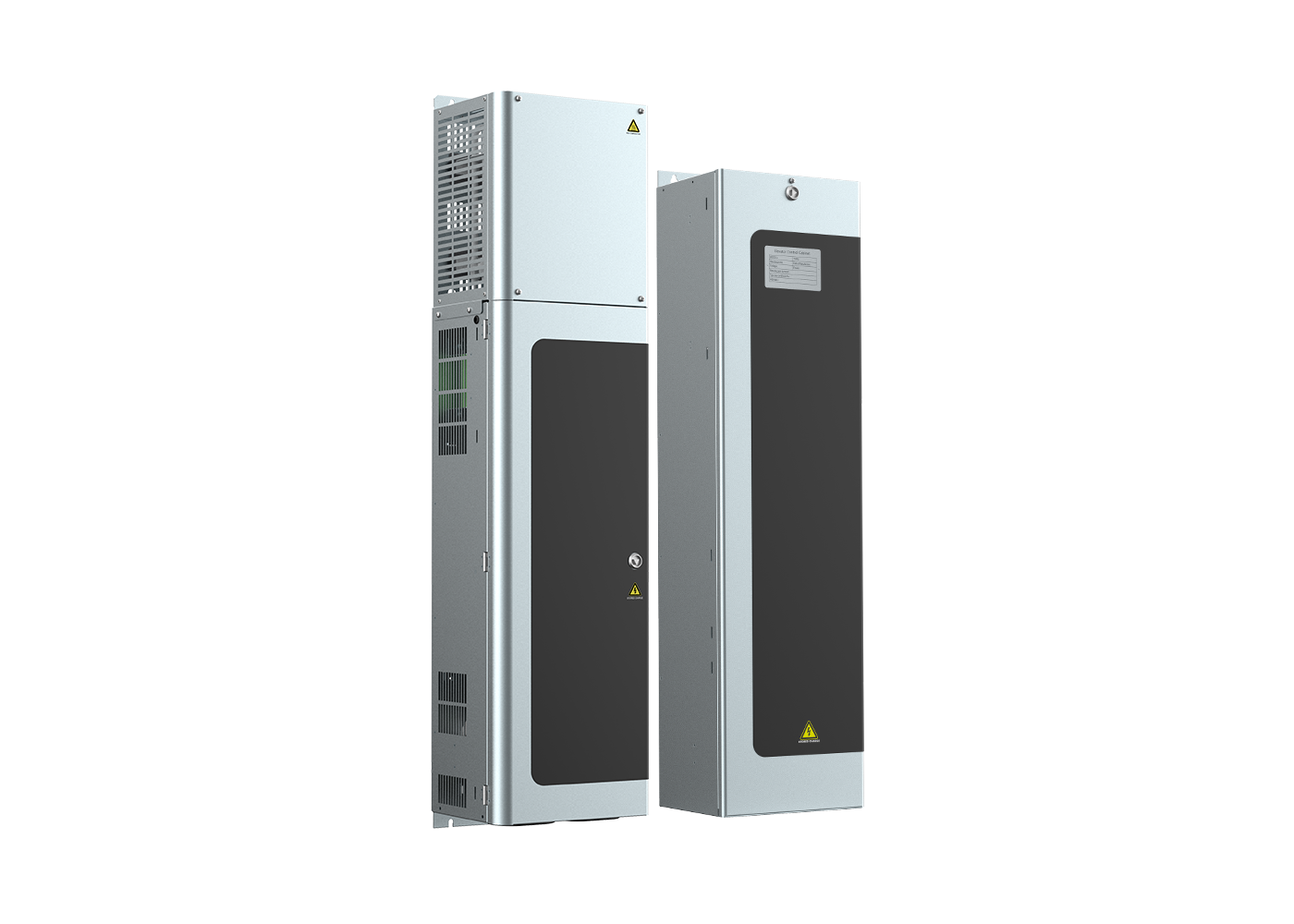

MTCC-V5 Series Elevator Integrated Control Panel
Integrated design, greatly saving machine room

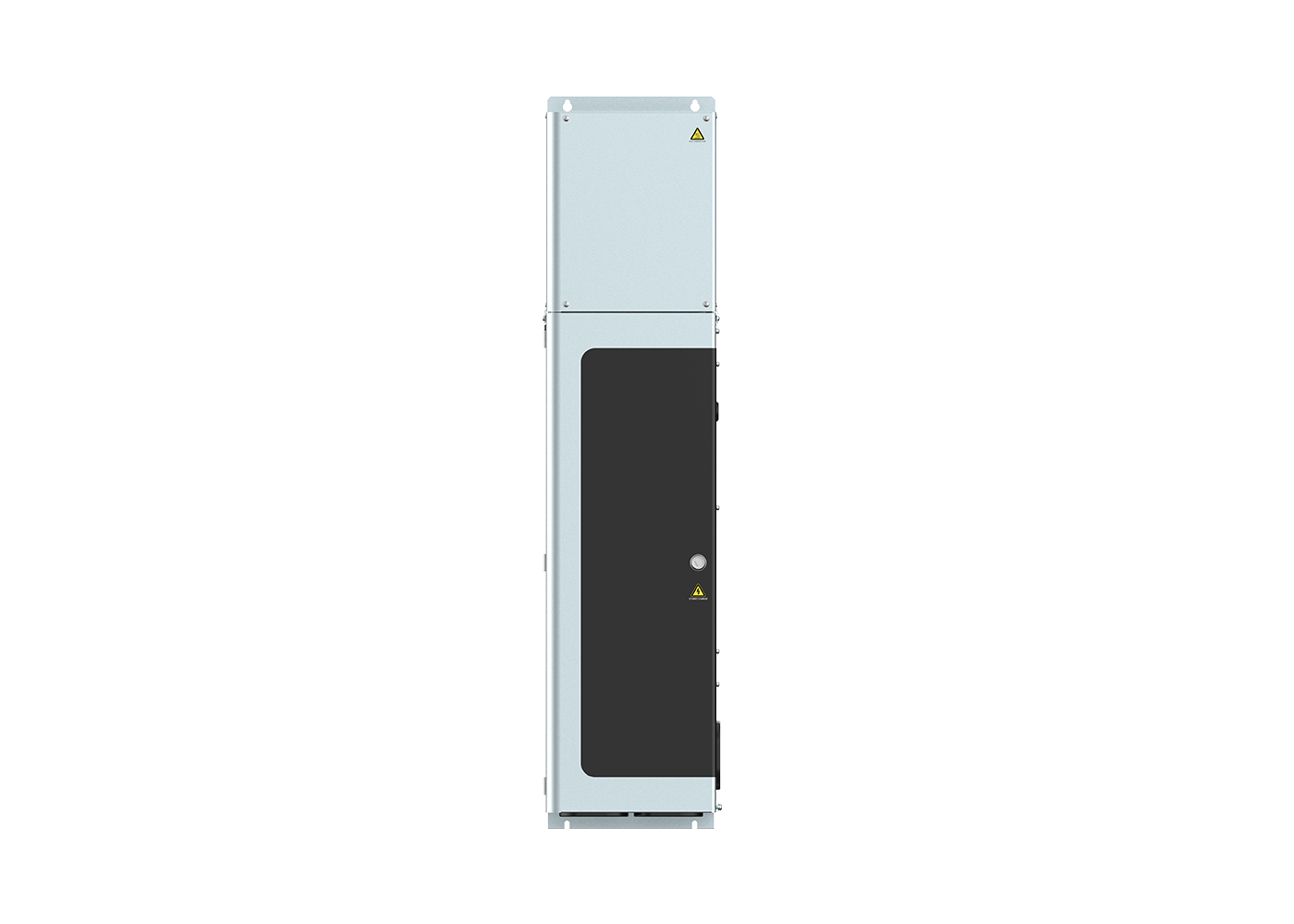

Machine room MTCC-V5: 240*1034*192mm
WHD Brake resistance box included)

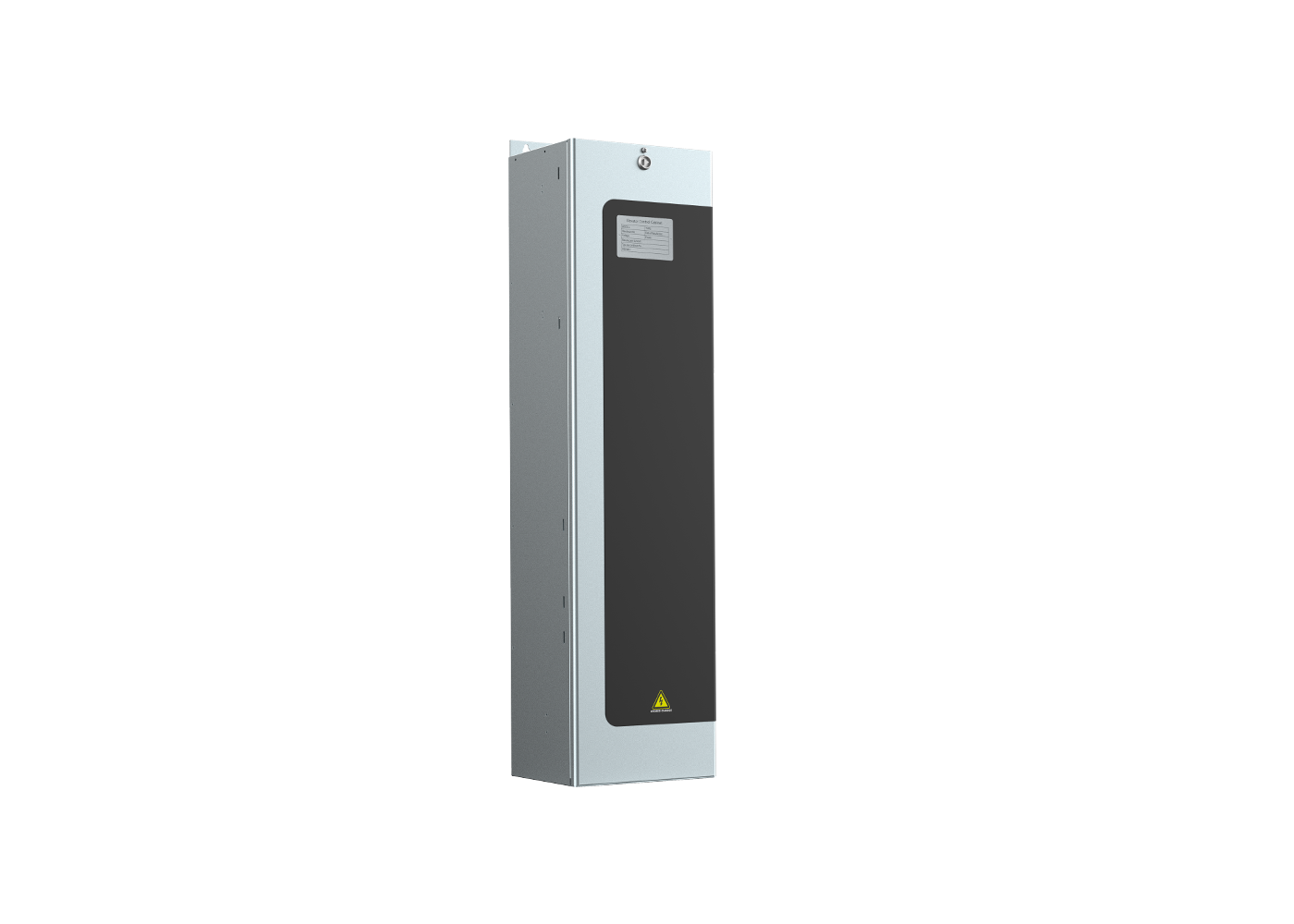

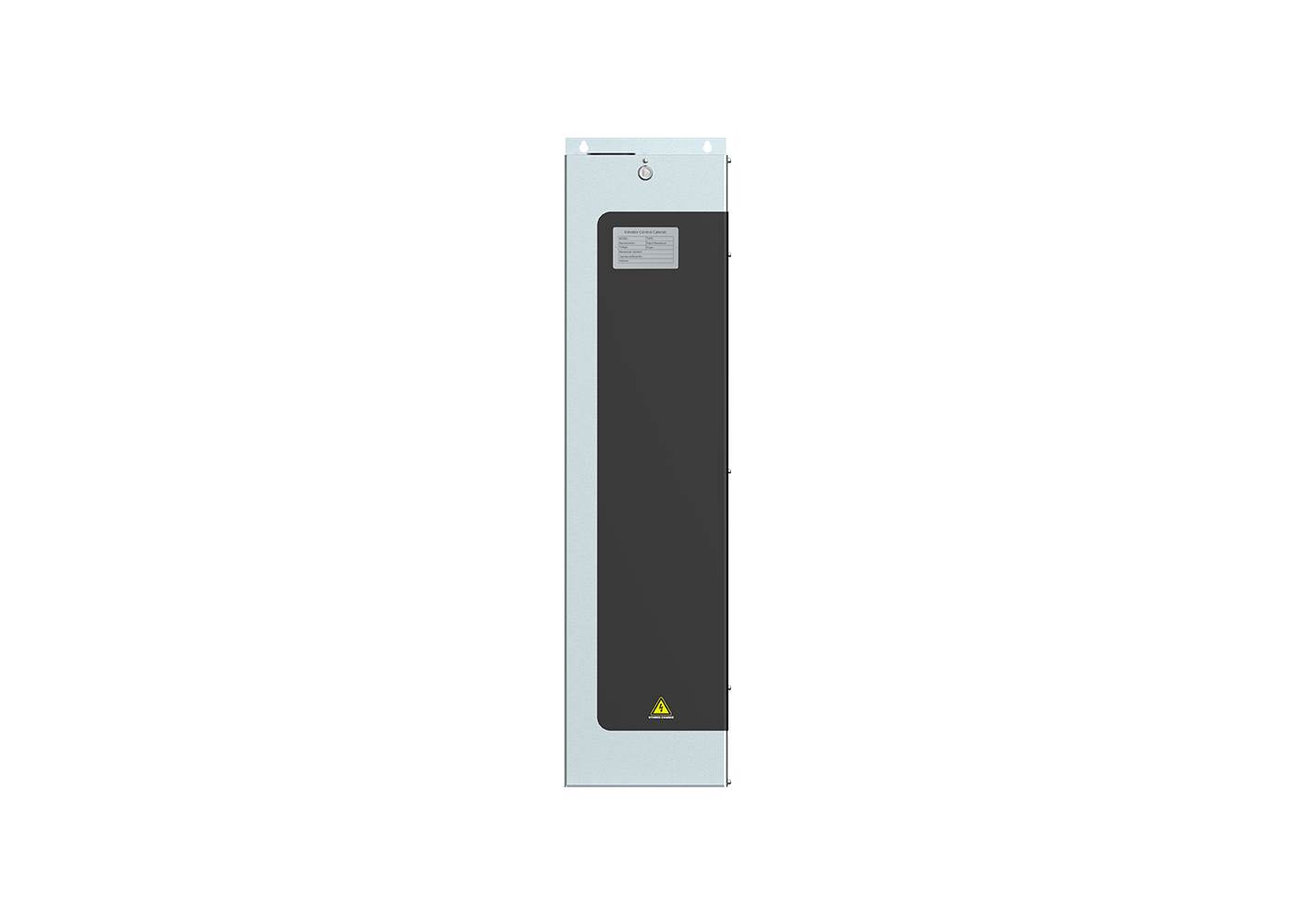

Machine-room-less MTCC-V5-W:40*945*191mm
(W*H*D Brake resistance box not included)
High performance drive platform
High performance DSP and CPU chip mutually coordinates with each and optimize current sampling circuit, which could realize auto controlling of comfort during elevator running.
Support protocol conversion board
Compatible to other communication modules,better application.
Modular Design
Interplate plug pin connection mode:Plug pins are used to connect boards in control panel saving 60% wiring than before.
Built-in loT module & Bluetooth module
Real-time detecting elevator multiple status, realizing Internet of Everything
Over-the-air downloadfunction, expert provide remote technical support
Cable-simplified design
Shaft cable cores decreased by 37 %
Traveling cable min. cores decreased from 34 to 78
Integrated design of car top board and interface board
The integrated design could reduce fault points, convenient for maintenance.
